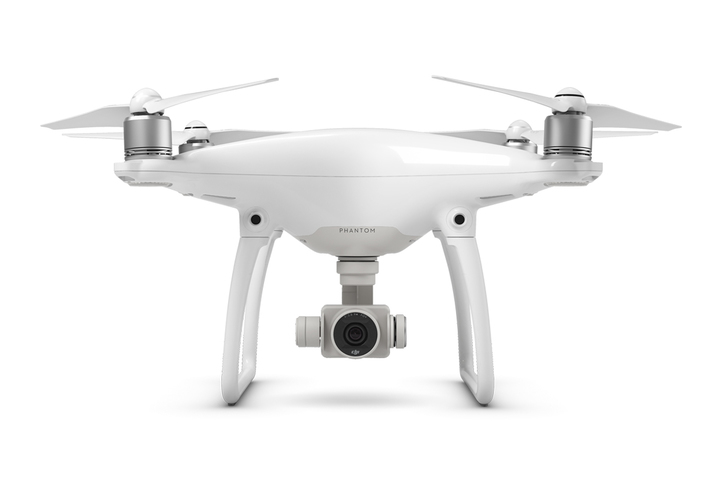

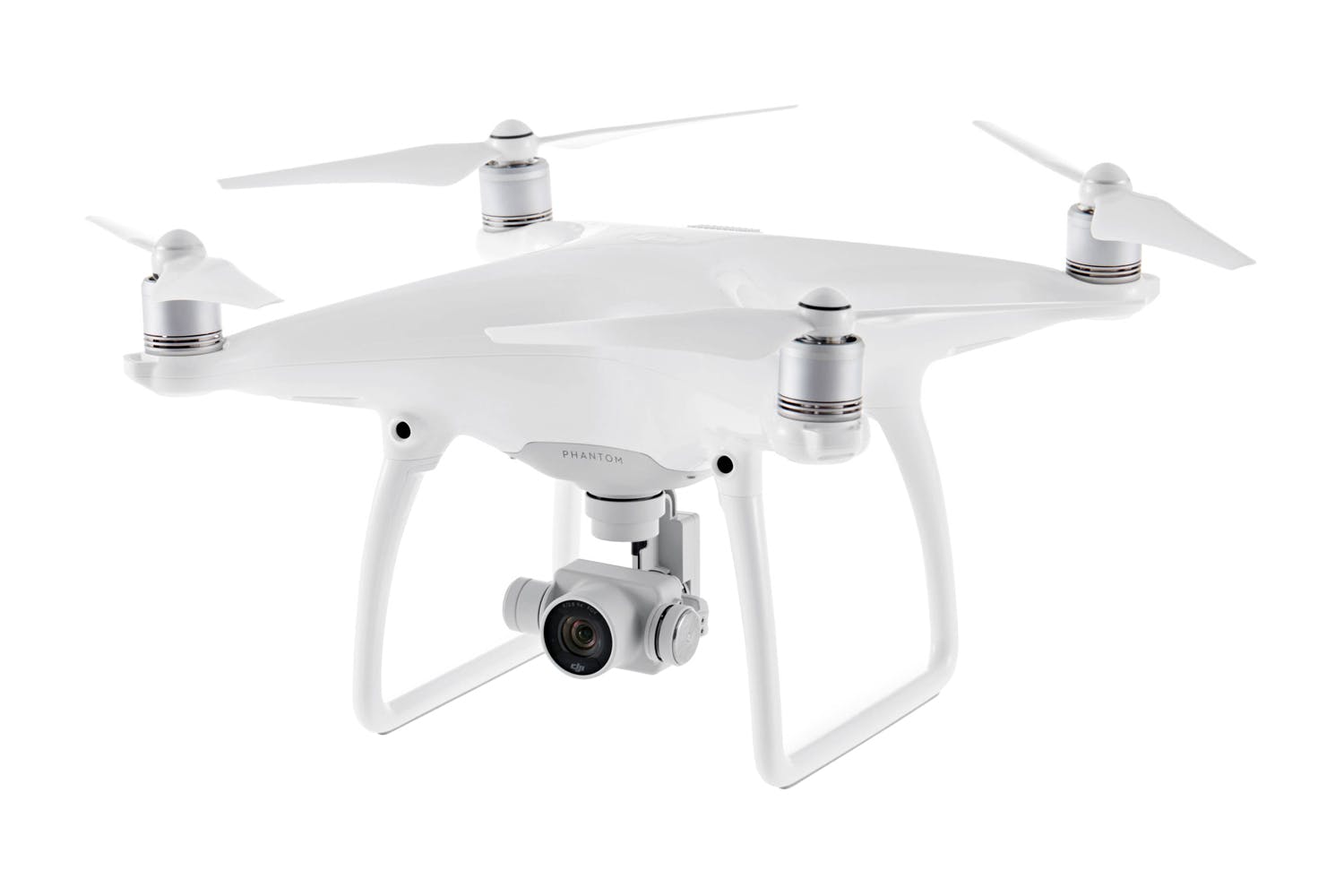

DJI PHANTOM 4ADVANCED

PHANTOM 4ADVANCED

An uprated camera is equipped with a 1-inch 20-megapixel sensor capable of shooting 4K/60 fps video and Burst Mode stills at 14 fps. The FlightAutonomy system includes five vision sensors for 2-directional obstacle sensing and forward-vision obstacle avoidance. The adoption of titanium alloy and magnesium alloy increases the rigidity of the airframe and reduces weight, making the Phantom 4 Advanced even lighter than the Phantom 4.

5 VISION SENSORS

Equipped with DJI’s FlightAutonomy system made up of five vision sensors, dual-band satellite positioning (GPS and GLONASS), ultrasonic rangefinders, and redundant sensors, the Phantom 4 Advanced can hover precisely in places without GPS and navigate complex environments. The dual forward vision sensors can see as far as 30 m out in front, enable auto brake, and hover or detour in front of obstacles within a 15-meter range.

REMOTE CONTROLLER WITH BUILT-IN SCREEN

The Phantom 4 Advanced+ comes equipped with the upgraded Lightbridge HD video transmission system, which has a maximum video transmission range of 4.3 mi (7 km). * A 5.5-inch 1080p screen integrated with the Phantom 4 Advanced+ offers 1000 cd/m2 of brightness, more than twice as bright as conventional smart devices, enabling clear visibility in direct sunlight. With a five-hour battery life, the Phantom 4 Advanced+ is a powerful aerial imaging solution. The built-in DJI GO 4 app allows you to live stream, edit, and share your aerial videos and photos instantly.
AVAILABILITY: In stock
  • AIRCRAFT
  • VISION SYSTEM
  • REMOTE CONTROLLER
  • INTELLIGENT FLIGHT BATTERY
  • GIMBAL
  • CAMERA
  • CHARGER
  • APP / LIVE VIEW

AIRCRAFT

Weight (Battery & Propellers Included) : 1368 g
Diagonal Size (Propellers Excluded) : 350 mm
Max Ascent Speed : S-mode: 6 m/s
P-mode:5 m/s
Max Descent Speed : S-mode:4 m/s
P-mode:3 m/s
Max Speed : S-mode: 45 mph (72 kph)
A-mode: 36 mph (58 kph)
P-mode: 31 mph (50 kph)
Max Tilt Angle : S-mode: 42°
A-mode: 35°
P-mode: 25°
Max Service Ceiling Above Sea Level : 19685 feet (6000 m)
Max Wind Speed Resistance : 10 m/s
Max Flight Time : Approx. 30 minutes
Operating Temperature Range : 32° to 104°F (0° to 40°C)
Satellite Positioning Systems : GPS/GLONASS
Hover Accuracy Range : Vertical:
±0.1 m (with Vision Positioning)
±0.5 m (with GPS Positioning)
Horizontal:
±0.3 m (with Vision Positioning)
±1.5 m (with GPS Positioning)

VISION SYSTEM

Vision System : Forward Vision System
Downward Vision System
Velocity Range : ≤31 mph (50 kph) at 6.6 ft (2 m) above ground
Altitude Range : 0 - 33 feet (0 - 10 m)
Operating Range : 0 - 33 feet (0 - 10 m)
Obstacle Sensory Range : 2 - 98 feet (0.7 - 30 m)
FOV : Forward: 60°(Horizontal), ±27°(Vertical)
Downward: 70°(Front and Rear), 50°(Left and Right)
Measuring Frequency : Forward: 10 Hz
Downward: 20 Hz
Operating Environment : Surface with clear pattern and adequate lighting (lux>15)

REMOTE CONTROLLER

Operating Frequency : 2.400 - 2.483 GHz
Max Transmission Distance : 2.400 - 2.483 GHz (Unobstructed, free of interference)
FCC: 4.3 mi (7 km)
CE: 2.2 mi (3.5 km)
SRRC: 2.5 mi (4 km)
Operating Temperature Range : 32° to 104°F (0° to 40°C)
Battery : 6000 mAh LiPo 2S
Transmitter Power (EIRP) : 2.400 - 2.483 GHz
FCC: 26 dBm
CE: 17 dBm
SRRC: 20 dBm
MIC: 17 dBm
Operating Current/Voltage : 1.2 A@7.4 V
Video Output Port : GL300E: HDMI
GL300C: USB
Mobile Device Holder : GL300E: Built-in display device (5.5 inch screen, 1920×1080, 1000 cd/m2, Android system, 4 GB RAM+16 GB ROM) GL300C: Tablets and smart phones

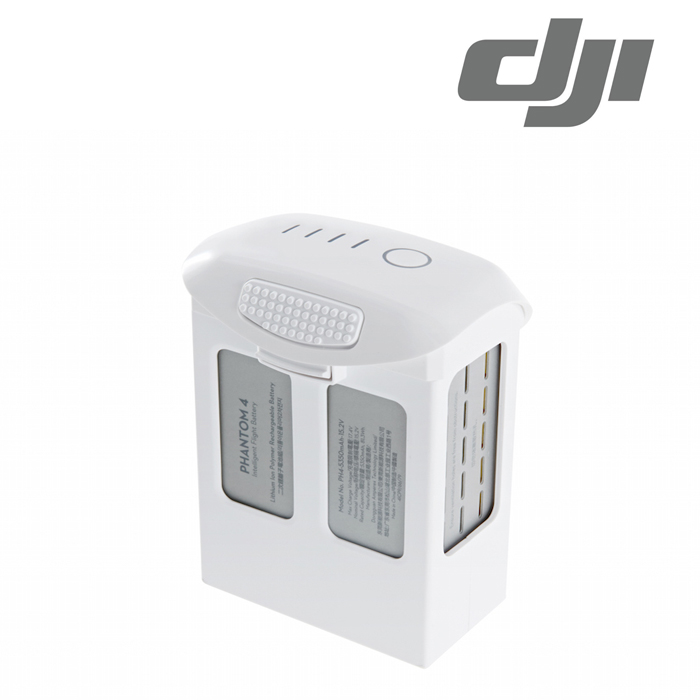

INTELLIGENT FLIGHT BATTERY

Capacity : 5870 mAh
Voltage : 15.2 V
Battery Type : LiPo 4S
Energy : 89.2 Wh
Net Weight : 468 g
Charging Temperature Range : 41° to 104°F (5° to 40°C)
Max Charging Power : 160 W

GIMBAL

Stabilization : 3-axis (pitch, roll, yaw)
Controllable Range : Pitch: -90° to +30°
Max Controllable Angular Speed : Pitch: 90°/s
Angular Vibration Range : ±0.02°

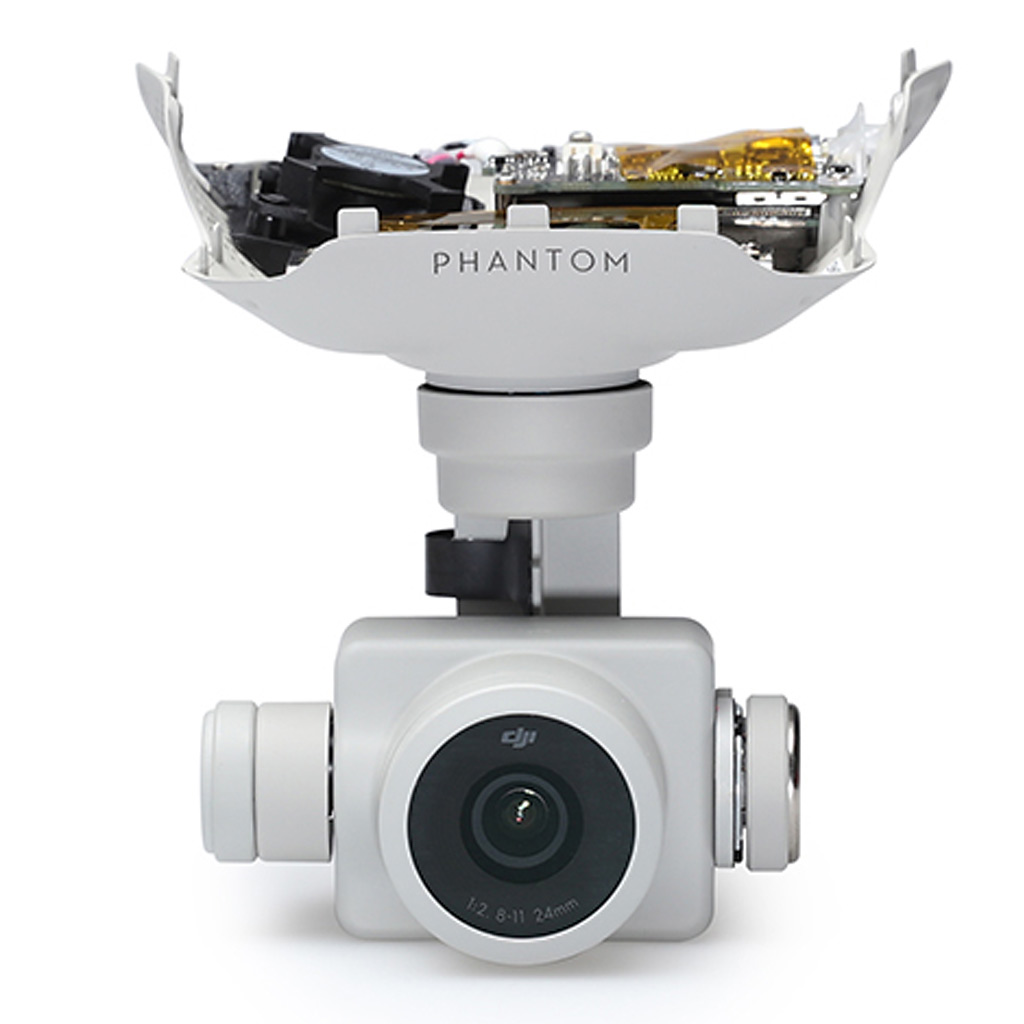

CAMERA

Sensor : 1’’ CMOS
Effective pixels: 20M
Lens : FOV 94° 20 mm (35 mm format equivalent) f/2.8 focus at ∞
ISO Range : Video:
100 - 3200 (Auto)
100 - 6400 (Manual)
Photo:
100 - 3200 (Auto)
100- 12800 (Manual)
Mechanical Shutter Speed : 8 - 1/2000 s
Electronic Shutter Speed : 8 - 1/2000 s
Image Size : 3:2 Aspect Ratio: 5472 × 3648
4:3 Aspect Ratio: 4864 × 3648
16:9 Aspect Ratio: 5472 × 3078
PIV Image Size : 4096×2160(4096×2160 24/25/30/48/50p)
3840×2160(3840×2160 24/25/30/48/50/60p)
2720×1530(2720×1530 24/25/30/48/50/60p)
1920×1080(1920×1080 24/25/30/48/50/60/120p)
1280×720(1280×720 24/25/30/48/50/60/120p)
Still Photography Modes : Single Shot
Burst Shooting: 3/5/7/10/14 frames
Auto Exposure Bracketing (AEB): 3/5 bracketed frames at 0.7 EV Bias
Interval: 2/3/5/7/10/15/20/30/60 s
Video Recording Modes : H.265
C4K:4096×2160 24/25/30p @100Mbps
4K:3840×2160 24/25/30p @100Mbps
2.7K:2720×1530 24/25/30p @65Mbps
2.7K:2720×1530 48/50/60p @80Mbps
FHD:1920×1080 24/25/30p @50Mbps
FHD:1920×1080 48/50/60p @65Mbps
FHD:1920×1080 120p @100Mbps
HD:1280×720 24/25/30p @25Mbps
HD:1280×720 48/50/60p @35Mbps
HD:1280×720 120p @60Mbps
H.264
C4K:4096×2160 24/25/30/48/50/60p @100Mbps
4K:3840×2160 24/25/30/48/50/60p @100Mbps
2.7K:2720×1530 24/25/30p @80Mbps
2.7K:2720×1530 48/50/60p @100Mbps
FHD:1920×1080 24/25/30p @60Mbps
FHD:1920×1080 48/50/60 @80Mbps
FHD:1920×1080 120p @100Mbps
HD:1280×720 24/25/30p @30Mbps
HD:1280×720 48/50/60p @45Mbps
HD:1280×720 120p @80Mbps
Max Video Bitrate : 100 Mbps
Supported File Systems : FAT32 (≤32 GB); exFAT (>32 GB)
Photo : JPEG, DNG (RAW), JPEG + DNG
Video : MP4/MOV (AVC/H.264; HEVC/H.265)
Supported SD Cards : Micro SD
Max Capacity: 128GB
Write speed ≥15MB/s, Class 10 or UHS-1 rating required
Operating Temperature Range : 32° to 104°F (0° to 40°C)

CHARGER

Voltage : 17.5V
Rated Power : 100 W

APP / LIVE VIEW

Mobile App : DJI GO 4
Live View Working Frequency : 2.4 GHz ISM
Live View Quality : 720P @ 30fps
Latency : Phantom 4 Advanced: 220 ms (depending on conditions and mobile device)
Phantom 4 Advanced +:160 - 180 ms
Required Operating Systems : iOS 9.0 or later
Android 4.4.0 or later
