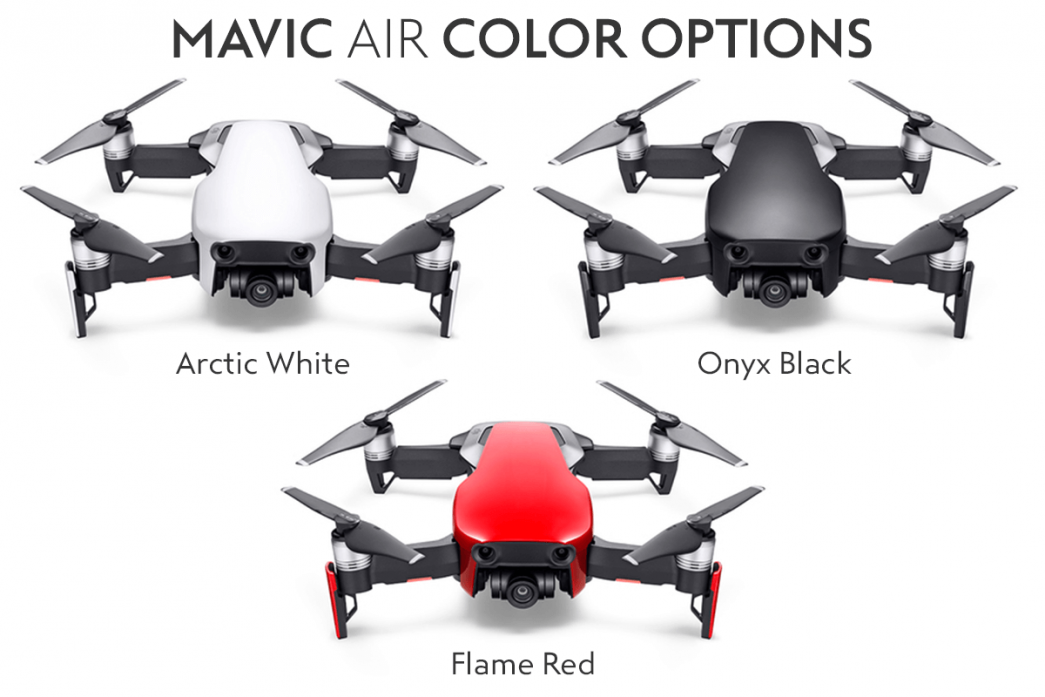

DJI MAVIC AIR

MAVIC AIR

3-Axis Gimbal Camera

The Mavic Air is the most portable DJI drone to house a 3-axis mechanical gimbal, with its angular vibration range reduced to 0.005°. Set in a triangular formation, gimbal dampeners help create even steadier shots.

32 MP Sphere Panoramas

In addition to Horizontal, Vertical, and 180° panoramas, the Mavic Air stitches 25 photos together in just eight seconds to create crystal-clear 32 MP Sphere panoramas.1 View them from an immersive perspective with DJI Goggles.

4K 100 Mbps Video

The Mavic Air shoots video at an incredible 4K 30 fps, recording at 100 Mbps to capture every second with UHD quality.

Slow-Motion Video

With support for recording 1080p 120 fps slow-motion video, the Mavic Air captures all your epic high-speed adventures.

HDR Photos

New HDR algorithms help you obtain the right exposure settings intelligently, according to lighting conditions. Overexposed or dark areas are processed for more natural transitions between highlights and shadows, while DSP acceleration allows for more efficient shooting.
AVAILABILITY: In stock
  • AIRCRAFT
  • SENSING
  • REMOTE CONTROLLER
  • BATTERY
  • GIMBAL
  • CAMERA
  • CHARGER
  • APP/LIVE
  • SD CARDS
  • MOBILE CONTROL
  • FOOTNOTES

AIRCRAFT

Takeoff Weight : 430 g
Dimensions(L×W×H) : Folded: 168×83×49 mm (L×W×H)
Unfolded : 168×184×64 mm (L×W×H)
Diagonal Length : 213 mm
Max Descent Speed : 3 m/s (S - mode[1])
1.5 m/s (P - mode)
1 m/s (Wi-Fi mode)
Max Ascent Speed : 4 m/s (S - mode[1])
2 m/s (P - mode)
2 m/s (Wi-Fi mode)
Max Speed (near sea level, no wind) : 68.4 kph (S - mode[1])
28.8 kph (P - mode)
28.8 kph (Wi-Fi mode)
Max Service Ceiling Above Sea Level : 5000 m
Max Flight Time (no wind) : 21 minutes (at a consistent 25 kph)
Max Hovering Time (no wind) : 20 minutes
Max Hovering Time (no wind) : 10 km
Max Flight Distance (no wind)) : 10 km
Max Wind Speed Resistance : 29 - 38 kph
Max Tilt Angle : 35° (S - mode[1])
15° (P - mode)
Max Angular Velocity : 250°/s (S - mode[1])
250°/s (P - mode)
Operating Temperature Range : 0°C - 40°C
GNSS : GPS + GLONASS
Operating Frequency : 2.400 - 2.4835 GHz
5.725 - 5.850 GHz
Transmission Power (EIRP) : 2.400 - 2.4835 GHz
FCC: ≤28 dBm
CE: ≤19 dBm
SRRC: ≤19 dBm
MIC: ≤19 dBm

5.725 - 5.850 GHz
FCC: ≤31 dBm
CE: ≤14 dBm
SRRC: ≤27 dBm
Hovering Accuracy Range : Vertical:
±0.1 m (with Vision Positioning)
±0.5 m (with GPS Positioning)
Horizontal:
±0.1 m (with Vision Positioning)
±1.5 m (with GPS Positioning)
Internal Storage : 8GB

SENSING SYSTEM

Forward : Precision Measurement Range:0.5 - 20 m
Detectable Range: 0.5 - 24 m
Effective Sensing Speed: ≤ 8 m/s
FOV: Horizontal 50°, Vertical ±19°
Backward : Precision Measurement Range: 0.5 - 10 m
Detectable Range: 0.5 - 20 m
Effective Sensing Speed: ≤ 8 m/s
FOV: Horizontal 50°, Vertical ±19°
Downward : Altitude Range: 0.1 - 8 m
Operating Range: 0.5 - 30 m
Operating Environment : Forward :
Surface with clear pattern and adequate lighting (lux > 15)
Backward:
Surface with clear pattern and adequate lighting (lux > 15)
(walls, trees, people, etc.)
Downward:
Detects clearly patterned surfaces with adequate lighting
(lux>15) and diffuse reflectivity (>20%)

REMOTE CONTROLLER

Operating Frequency : 2.400 - 2.483 GHz;
5.725 - 5.850 GHz
Max Transmission Distance(Unobstructed, free of interference) : 2.400 - 2.4835 GHz:
FCC: 48000 m
CE: 2000 m
SRRC: 2000 m
MIC: 2000 m

5.725 - 5.850 GHz:
FCC: 4000 m
CE: 500 m
SRRC: 2500 m
Operating Temperature Range : 0℃ to 40℃
Battery : 2970 mAh
Transmitter Power (EIRP) : 2.400 - 2.4835 GHz:
FCC:≤26 dBm
CE: ≤18 dBm
SRRC: ≤18 dBm
MIC:≤18 dBm

5.725 - 5.850 GHz:
FCC: ≤30 dBm
CE: ≤14 dBm
SRRC: ≤26 dBm
Operating Current/Voltage : 1400 mA ⎓ 3.7 V (Android)
750 mA ⎓ 3.7 V (iOS)
Supported Mobile Device Size : Max length: 160 mm
Supported Thickness: 6.5-8.5 mm
Supported USB Port Types : Lightning, Micro USB (Type-B), USB-C

INTELLIGENT FLIGHT BATTERY

Capacity : 2375 mAh
Voltage : 11.55 V
Max Charging Voltage : 13.2 V
Battery Type : LiPo 3S
Energy : 27.43 Wh
Net Weight : 140 g
Charging Temperature Range : 5℃ - 40℃
Max Charging Power : 60 W

GIMBAL

Mechanical Range : Tilt: 100° to 22°
Roll: -30° to 30°
Pan: 12° to 12°
Controllable Range : Tilt: -90° to 0° (default setting)
-90° to +17° (extended)
Stabilization : 3-axis (tilt, roll, pan)
Max Control Speed (tilt) : 120°/s
Angular Vibration Range : ±0.005°

CAMERA

Sensor : 1/2.3” CMOS
Effective pixels:12 Megapixels
Lens : FOV: 85°
35 mm Format Equivalent: 24 mm
Aperture: f/2.8
Shooting Range: 0.5 m to ∞
ISO Range : Video:
100 - 3200 (auto)
100 - 3200 (manual)
Photo:
100-1600(Auto)
100-3200(Manual)
Shutter Speed : Electronic Shutter: 8 - 1/8000s
Still Image Size : 4:3: 4056×3040
16:9: 4056×2280
Still Photography Modes : Single shot
HDR
Burst shooting: 3/5/7 frames
Auto Exposure Bracketing (AEB): 3/5 bracketed frames at 0.7EV Bias
Interval: 2/3/5/7/10/15/20/30/60 s
Pano: 3×1: 42°×78°, 2048×3712 (W×H)
3×3: 119°×78°, 4096×2688 (W×H)
180°: 251°×88°, 6144×2048 (W×H)
Sphere (3×8+1): 8192×4096 (W×H)
Video Recording Modes : 4K Ultra HD: 3840×2160 24/25/30p
2.7K: 2720×1530 24/25/30/48/50/60p
FHD: 1920×1080 24/25/30/48/50/60/120p
HD: 1280×720 24/25/30/48/50/60/120p
Max Video Bitrate : 100 Mbps
Supported File System : FAT32
Supported File System : FAT32(≤ 32 GB );exFAT(> 32 GB)
Photo Format : JPEG,DNG (RAW)
Video Format : MP4/MOV (H.264/MPEG-4 AVC)

CHARGER

Input : 100 - 240 V, 50/60 Hz, 1.4 A
Output : Main: 13.2 V ⎓ 3.79 A
USB: 5 V ⎓ 2 A
Voltage : 13.2 V
Rated Power : 50 W

APP / LIVE VIEW

Video Transmission System : Enhanced Wi-Fi
Mobile App : DJI GO 4T
Live View Quality : Remote Controller:
720p@30fps
Smart Device:
720p@30fps
DJI Goggles:
720p@30fps
Latency (depending on environmental conditions and mobile device) : 170 - 240 ms
Required Operating System/td> : iOS v9.0 or later
Android v4.4 or later

SUPPORTED SD CARDS

Supported SD Cards : microSD
Class 10 or UHS-1 rating required
Recommended microSD Cards : 16G
Sandisk Extreme
Kingston 16GB SDHC-I SDCAC/16GB
32G
Sandisk Extreme V30
Sandisk Extreme V30 A1
Sandisk Extreme V30 Pro A1
64G
Sandisk Extreme V30 A1
Sandisk Extreme Pro V30 A1
128G
Sandisk Extreme V30 A1
Sandisk Extreme Plus V30 A1

MOBILE DEVICE CONTROL

Operating Frequency : 2.400 - 2.4835 GHz
5.725 - 5.850 GHz
Max Transmission Distance (unobstructed, free of interference) : Distance: 80 m
Height: 50 m

FOOTNOTES

Footnotest : 1] Remote controller required.

These specs have been determined through tests conducted with the latest firmware. Firmware updates can enhance performance, so updating to the latest firmware is highly recommended.
