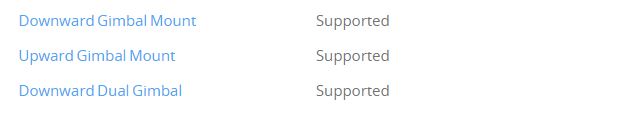

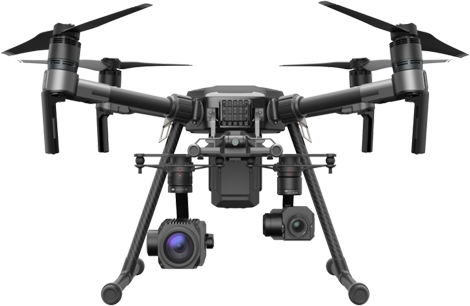

The M210 builds on the features from the M200 with the ability to mount multiple payload configurations – one single downward facing gimbal, dual downward-facing gimbals, or one upward-facing gimbal.
The dual gimbal configuration unlocks 5 different combinations, please refer to the table below to properly mount your cameras. Left and right gimbal port is determined from the perspective of looking directly at the nose of the drone.
The M210 adds additional connectivity and power ports to support third party sensors and accessories. The M210 has the capability to support additional sensors in the future and additional payloads can be mounted on top of the aircraft. Each purchase of the M210 models comes with DJI's CrystalSky monitor for enhanced operations.
With RTK — Real Time Kinematics — the Matrice 210 RTK offers centimeter-accurate global positioning. RTK capability enhances the Matrice 210’s ability to collect data for surveying, photogrammetry and mapmaking. That makes the 210 RTK especially useful in such applications as engineering, construction and mining.

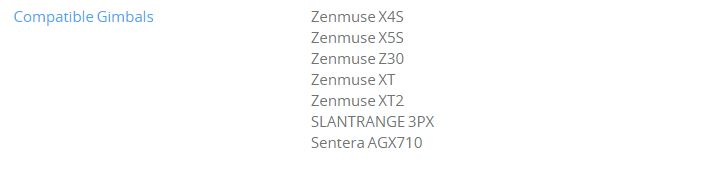

Even in this form, the 210 RTK remains an economical solution for enterprise users seeking to add a drone to enhance accuracy, reduce costs and save time. It has the ability to carry and use two cameras simultaneously, or one upward-facing camera. An FPV camera for navigating is built in, but you can select the compatible cameras most useful in your field, including models capable of thermal imaging, high-definition video and zooming for detail.

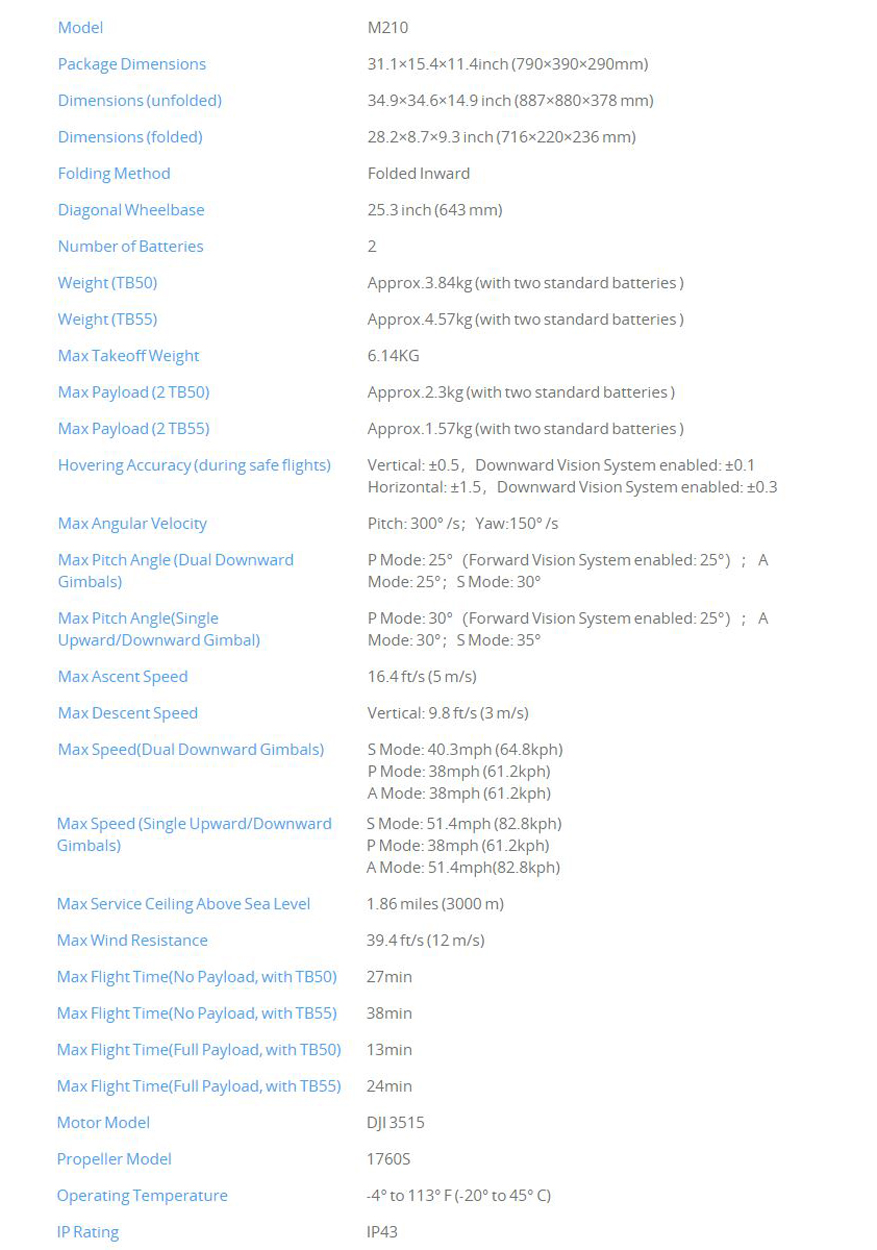

The 210 RTK is built to IP43 resistance, so it cam be flown in the rain. It is sized to remain stable in crosswinds, with added stability from its 17-inch propellers. Its foldable body, plus removable batteries, propellers and landing gear, make it easy to store and transport in the included case.
